Asymmetrical Famous person: AN-BU ‘KAI’ Continental GT650


Asymmetrical design is a tough idea to understand. Discovering concord within the unharmonious is as difficult because it sounds, and it takes a novel thoughts to grasp. On this planet of customized bikes, the unequivocal skilled of asymmetry is Koichi Fujita of Japan’s AN-BU Customized Motors. Since 2000 Koichi-san has used his fabrication abilities to construct distinctive, punk rock-esque machines shod in asymmetrical race-inspired bodywork. His distinctive strategy has constructed him fairly a following and prior to now, we’ve seen him staff up with IMB14 in Italy and Dependancy Customs in Australia.

For his newest collaborative work, Koichi-san was approached by Royal Enfield. The Indian producer supplied AN-BU the chance to create the primary Japanese-built Continental GT650 for his or her ongoing ‘Customized World’ sequence. However after seeing the GT650 within the flesh, Koichi-san thought-about the proposal with trepidation. Fortunately, after Royal Enfield defined he could be given carte blanche with the construct, he accepted the problem and went to city on the burgeoning 650 twin.

AN-BU Japan Royal Enfield GT650 custom motorcycle

“I named this bike ‘Royal Enfield – KAI’,” says Koichi-san. “Once I began to customise bikes as an adolescent we didn’t have the phrase customized so we known as our bikes KAIZO which implies modification. I modified it to the form I envisioned and named it ‘KAI’ to acknowledge my origins as a customized builder.”

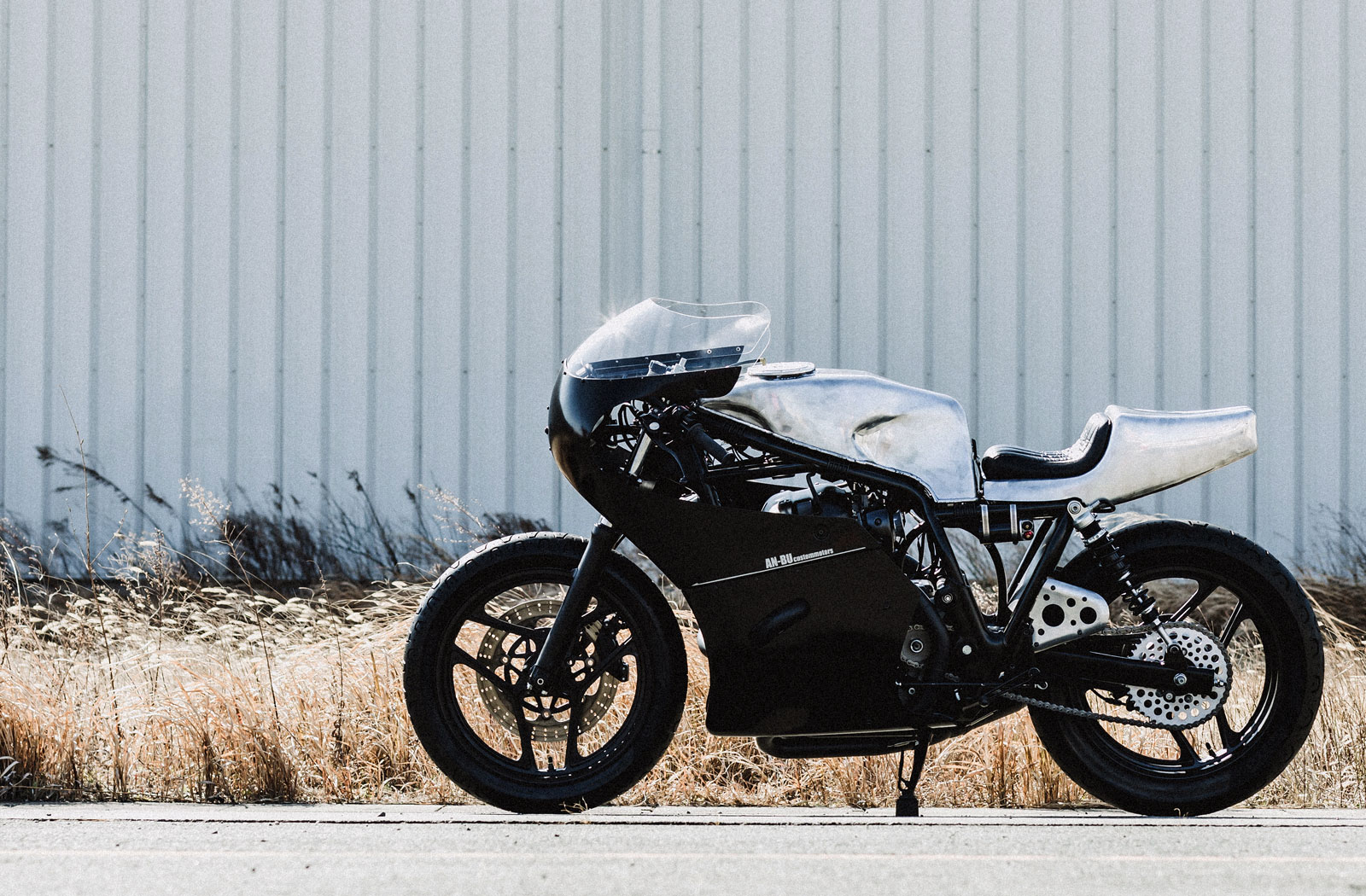

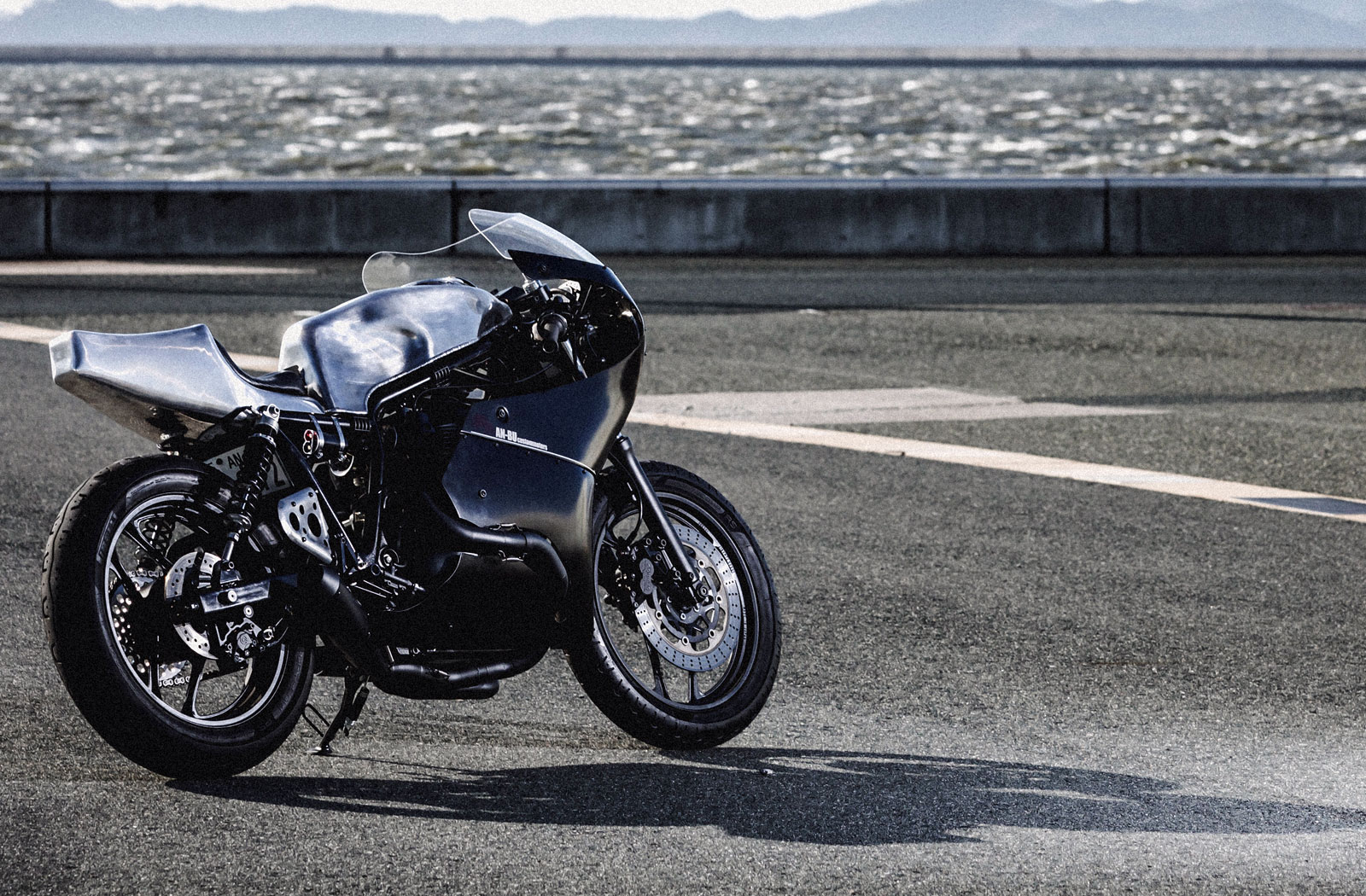

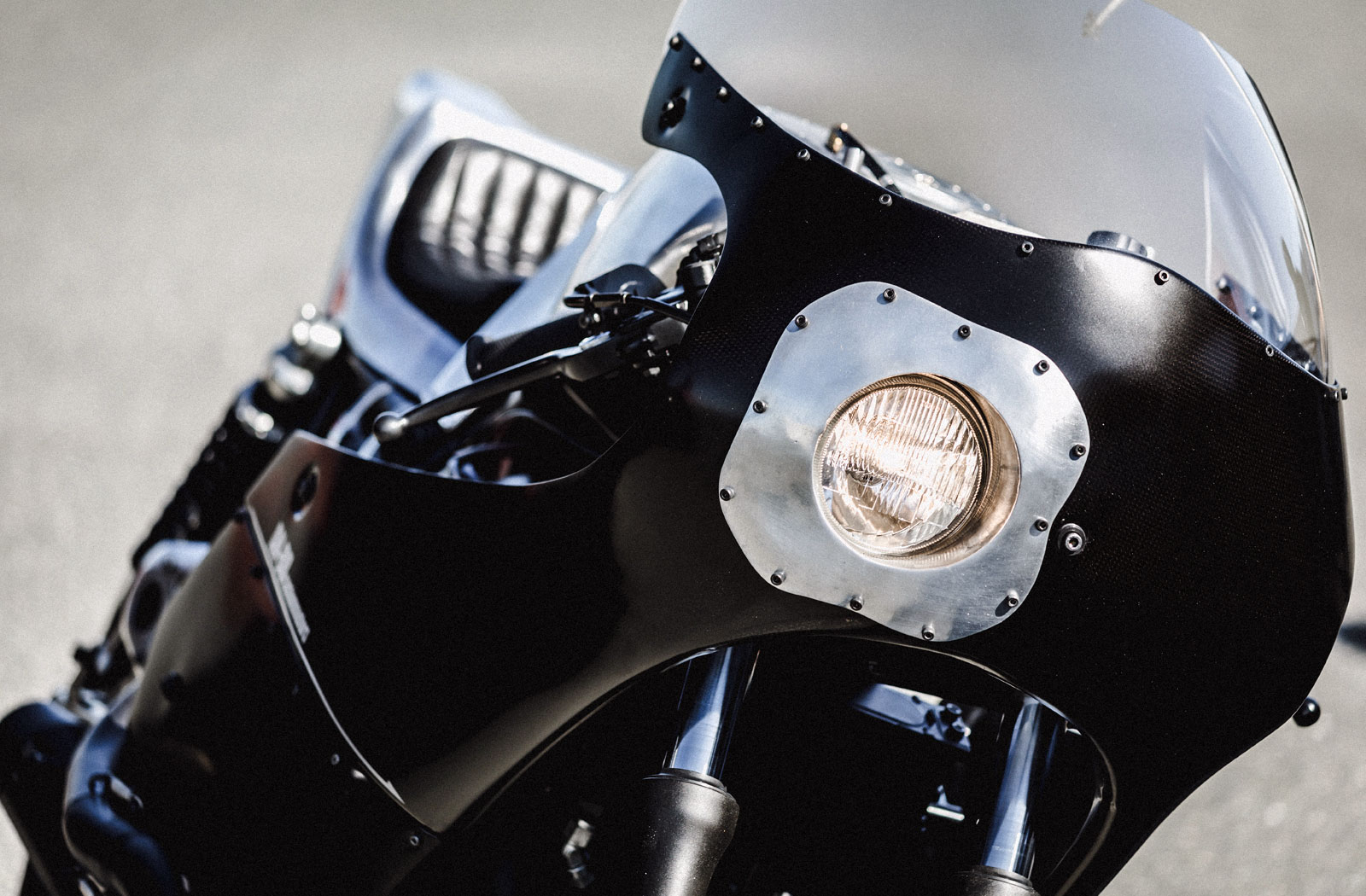

It takes a eager eye to grasp there’s Royal Enfield GT650 beneath Koichi-san’s customized work. In typical AN-BU model, the GT650 wears an Endurance racer-style full fairing which all however conceals Enfield’s unmistakable parallel twin. Common from carbon fibre and that includes an asymmetrical headlight in a handbuilt alloy encompass, it’s the epitome of AN-BU model.

AN-BU Japan Royal Enfield GT650 custom motorcycle

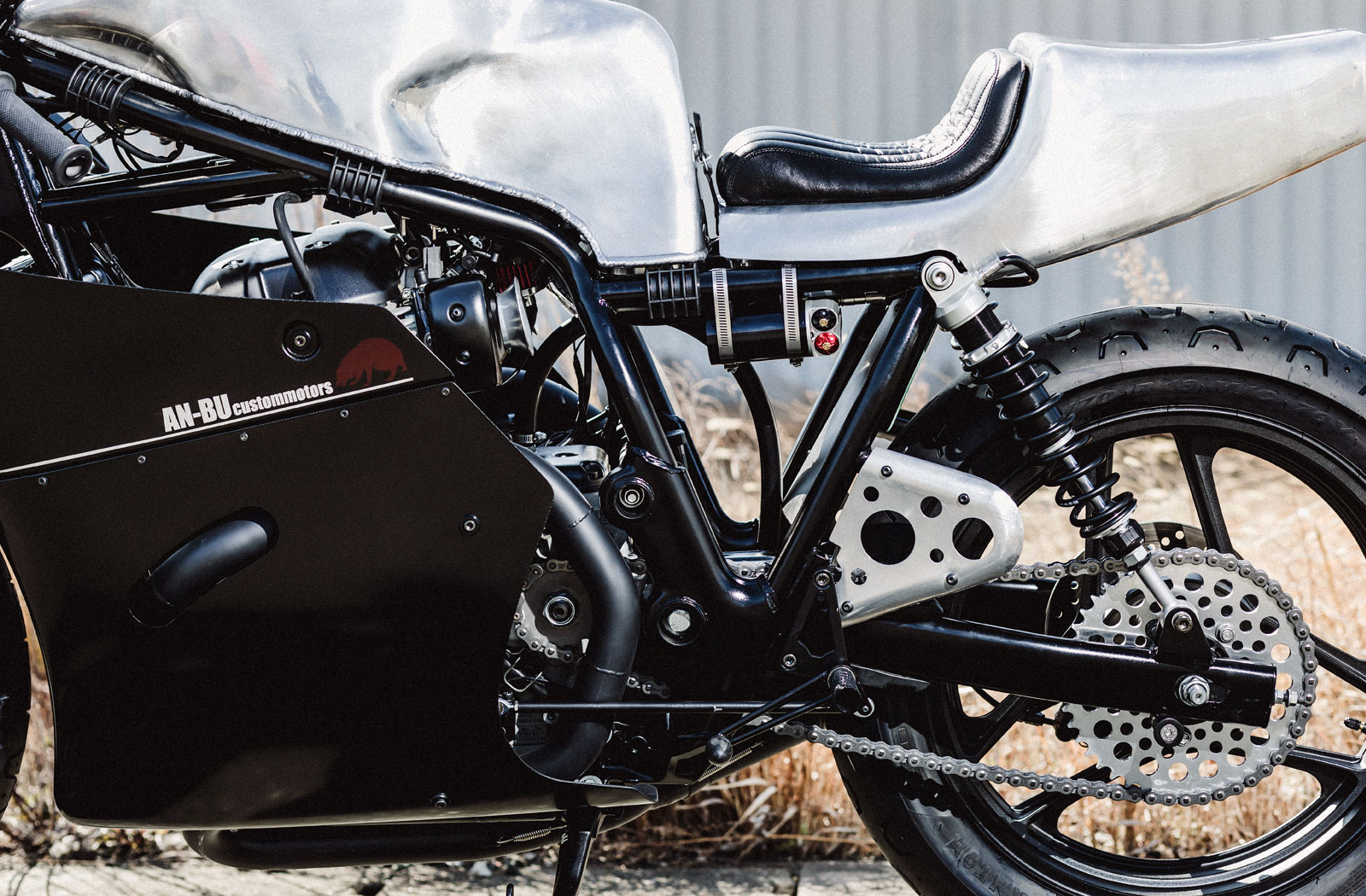

If the fairing isn’t sufficient to throw you off the GT650 scent, Koichi-san’s body mods and wheel selection undoubtedly will. The subframe is a wholly new design that’s shortened and narrowed to simply accept the brand new tail unit. And beneath the tank, the highest rails of the body have been given the look of an eighties sports activities bike.  As for the wheels, the traditional spoked rims are gone and of their place are solid hoops wrapped in purposeful Pirelli Phantom Sportcomp rubber.

“A vital idea to creating my customized bikes is to create a bike that appears cool on the road when ridden. I wished to specific a way of velocity by creating the type of a racing machine. I imagined a bike that was used on the monitor within the ’70s and ’80s, however modified so it could possibly be ridden on open roads.” Koichi-san explains.

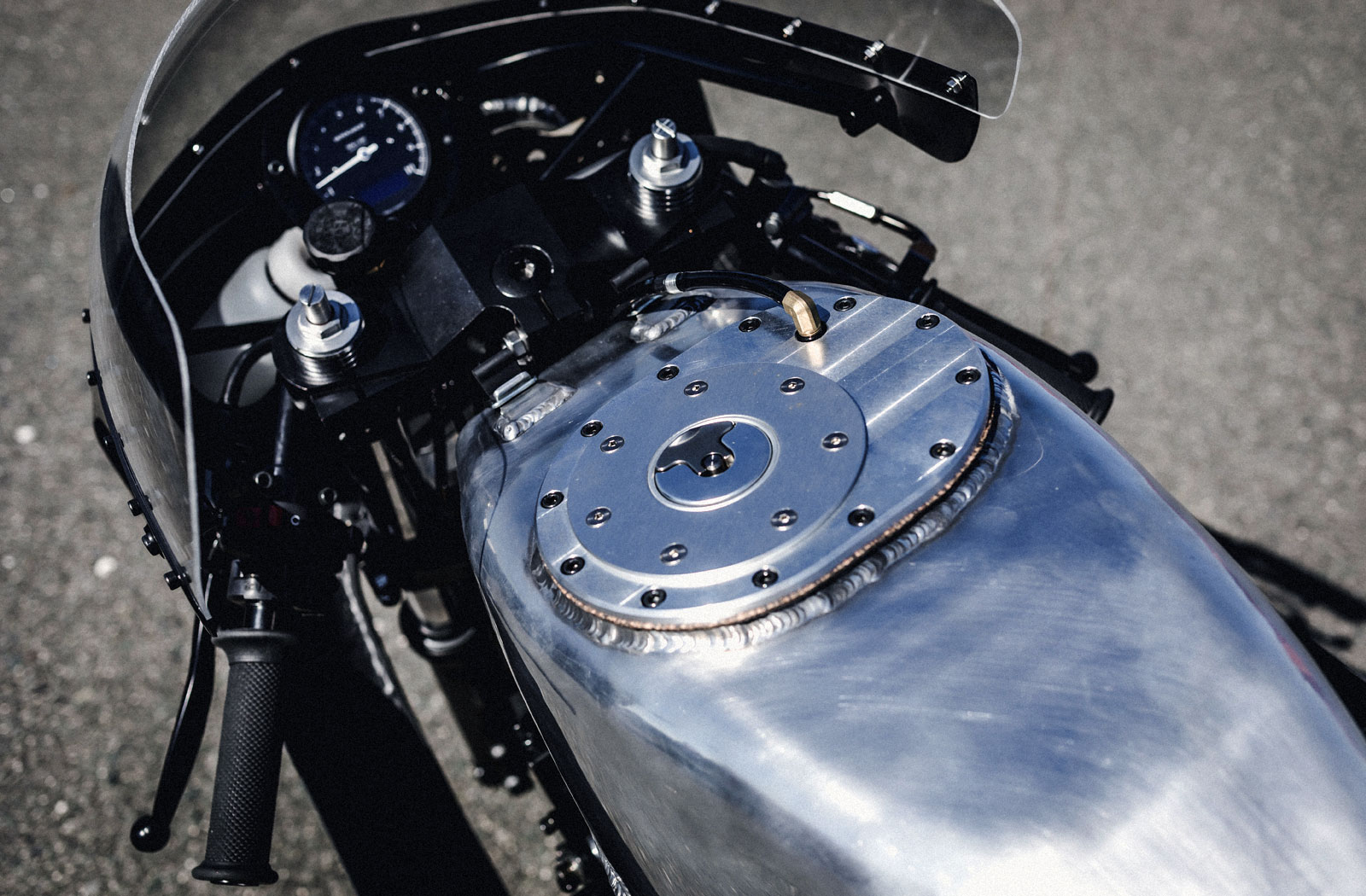

“I didn’t wish to present the carbon weave, so I’ve painted the floor matte black. It reveals the weave of the carbon relying on the depth of the sunshine and the angle of view. The gasoline tank and seat cowl have been completed by using the hammered floor as it’s. I feel it might be unnatural if the surfaces have been evened out to a shiny end. The bikes I construct are designed to slot in with the town and to look good on the road.”

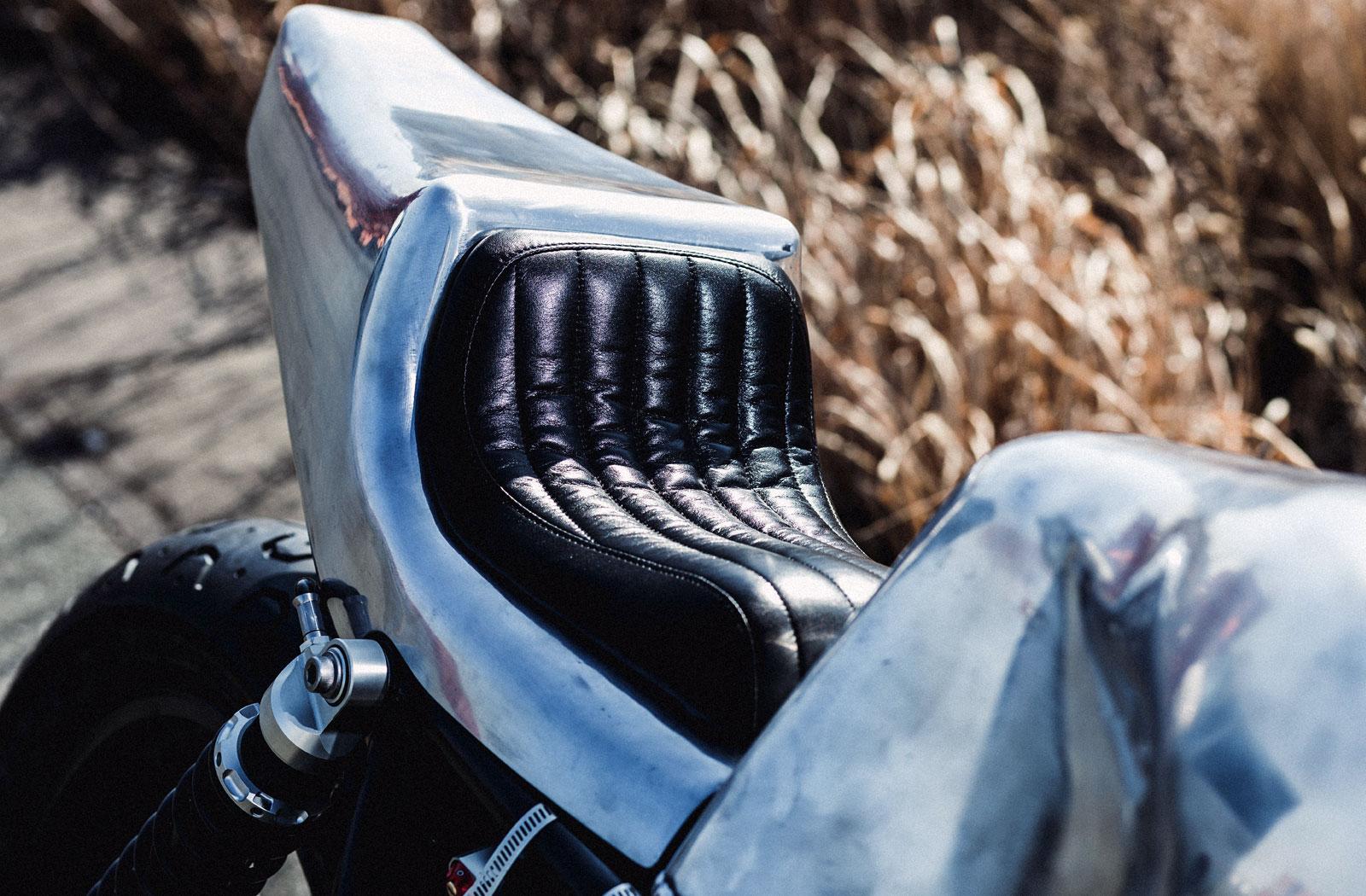

To grasp his road racer imaginative and prescient, Koichi-san has constructed completely new bodywork from sheets of aluminium. Impressed by the brawny bodywork that dominated race tracks in the course of the ’80s, he’s exchanged chiselled edges for natural strains and narrowed every part all the way down to type a slender physique for the 650 twin. An endurance-style filler welded to the tank and rubber body mounts completes the ex-track bike look whereas a tuck-and-roll seat provides a contact of traditional customized model.

AN-BU Japan Royal Enfield GT650 custom motorcycle

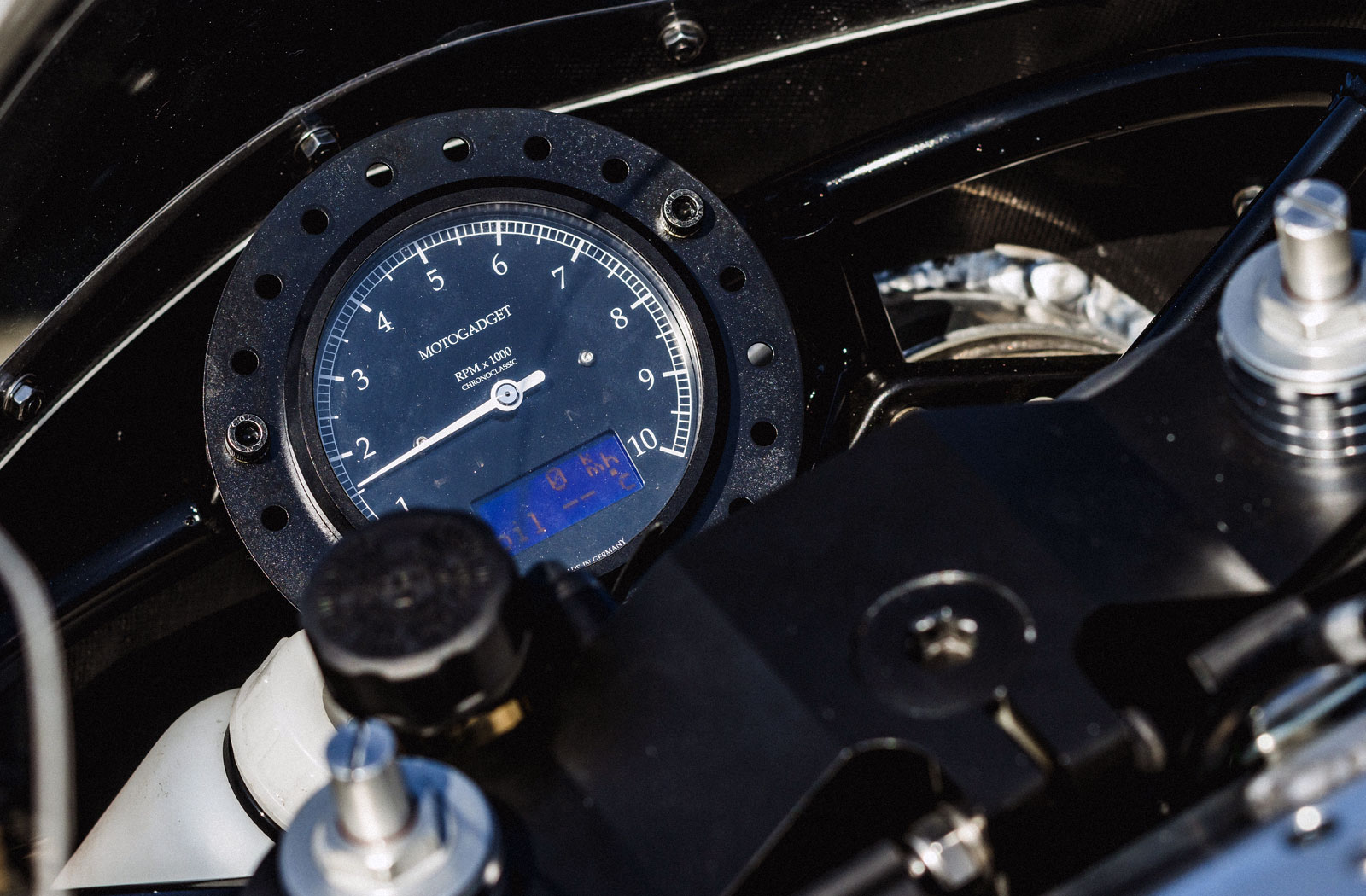

To additional improve this bikes racer vibe, Koichi-san has handpicked a number of aftermarket elements. Within the cockpit, you gained’t discover any signal of the unique GT650 gear. The dual gauges are gone and of their place is a single Motogadget Chronoclassic Tachometer in a customized encompass. The clip-on bars are bespoke as is the chunky CNC machined prime clamp. The ignition has been relocated out of sight too.

Much like race bikes, KAI seems to be devoid of normal lighting gear. Nevertheless, since this bike must be roadworthy, Koichi-san opted for discrete Kellermann lighting. Tiny flip indicators fulfil the front-end sign duties whereas on the rear, tucked away underneath the tail, you’ll discover a pair of dual-function Bullet Atto blinker/brake lights.

AN-BU Japan Royal Enfield GT650 custom motorcycle

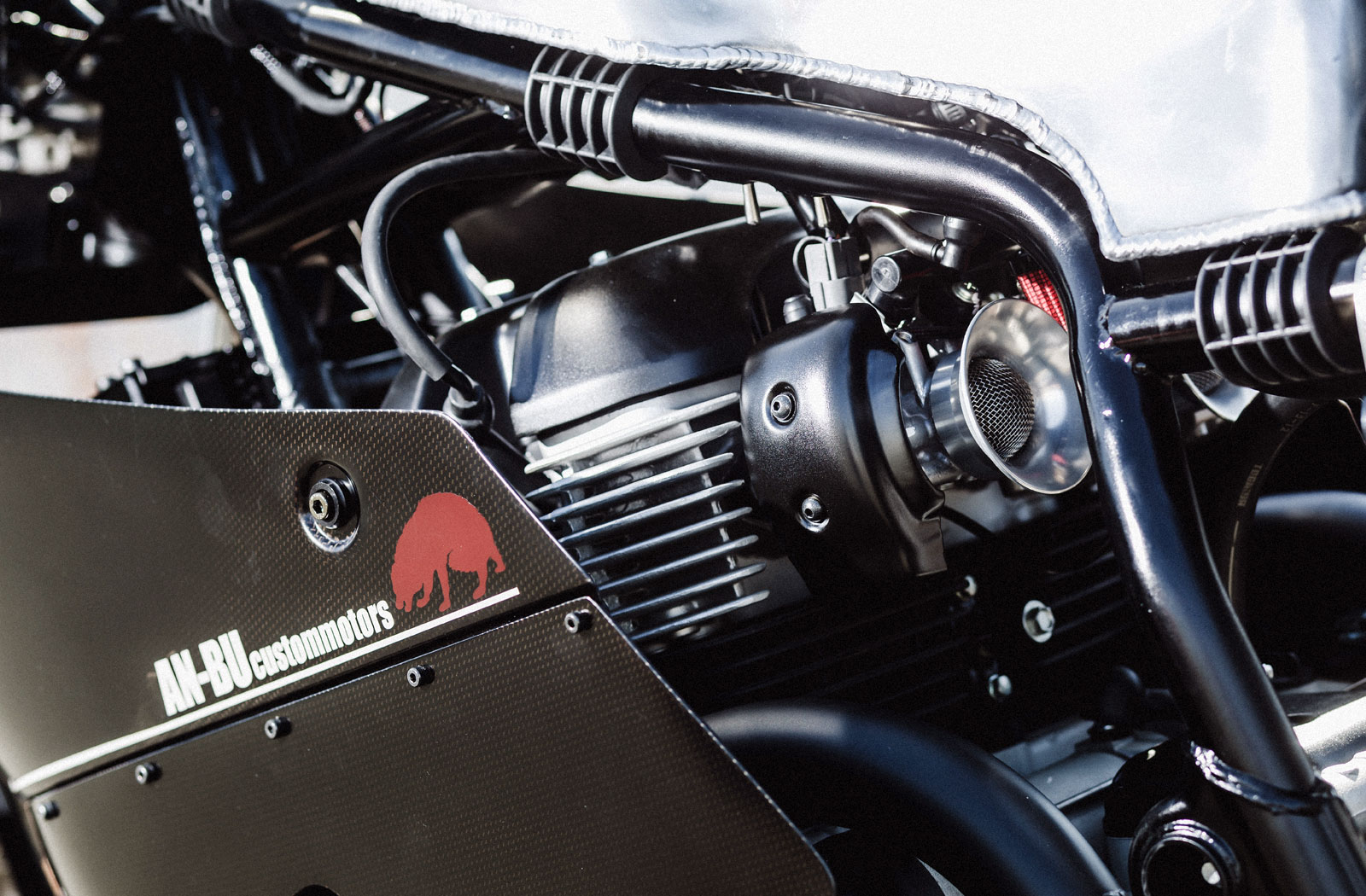

Though the GT650’s engine stays basically untouched, a number of well-planned modifications enhance this bike’s total efficiency. For starters, the airbox has been eliminated to assist the parallel twin breathe simpler. As an alternative are mesh-covered velocity stacks which might be once more a salute to racing machines. The exhaust is a full customized system constructed completely in-house. The bespoke headers, which snake across the engine, make cameo appearances as they weave out and in of the fairing, however the bulk of the lengthened system is sort of completely hidden from sight earlier than it merges right into a single shorty megaphone muffler.

Dealing with enhancements are the place Koichi-san actually targeted his consideration and consequently the GT650 now wears a wholly new suspension system. “The fork is made by KAYABA, and is 38mm in diameter, impressed by the racing machines of the ’80s,” he says. “The triple tree has a pitch and offset for sport driving and along with the change within the rear suspension, which has an extended size and a large adjustment vary, the perfect dealing with was achieved for me.”

See additionally

Petrolettes Wrench Off

Final of all of the brakes are all new too. Utilizing a mixture of Nissin and Brembo gear Koichi-san has put collectively a package deal that provides greater than ample stopping energy.

AN-BU Japan Royal Enfield GT650 custom motorcycle

“After all, I’m additionally within the newest racing machines,” says Koichi-san. “Their expertise is at all times evolving, and their mechanisms are very fascinating to me. Since I race on the monitor I wish to incorporate new concepts and experiences into the creation of a motorbike, and I additionally wish to evolve the bikes of my clients who’re additionally racing on the monitor.”

Up to now trendy bikes just like the GT650 haven’t been on AN-BU’s radar, however because of Royal Enfield this might imply a complete new strategy for the Japanese workshop. With KAI, Koichi-san has confirmed his distinctive model can transcend any period of motorbike. Hopefully this implies there will probably be extra builds like this rolling out of his workshop quickly.



AN-BU Japan Royal Enfield GT650 custom motorcycle
